Home>>IInsulating Joint>>Insulating Joint
Insulating Joints
Insulating Joints

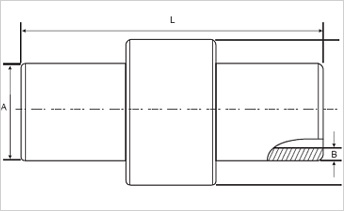

Insulating Joints| Type | Specification | A | | L |
Steel pipe material |
|
| DN25-25 | DN25 | 34 | 4 | 250 |
Steel Pipe 20 GB/T8163
|
| DN25B-25 | 32 | 4 | 250 | ||
| DN40-25 | DN40 | 48 | 4 | 300 | |
| DN50-25 | DN50 | 60 | 4 | 350 | |
| DN50B-25 | 57 | 4 | 350 | ||
| DN65-25 | DN65 | 76 | 5 | 350 | |
| DN80-25 | DN80 | 89 | 5 | 400 | |
| DN100-25 | DN100 | 114 | 5 | 400 | |
| DN100B-25 | 108 | 5 | 400 | ||
| DN125-25 | DN125 | 140 | 6 | 500 | |
| DN125B-25 | 133 | 6 | 500 | ||
| DN150-25 | DN150 | 168 | 7 | 500 | |
| DN150B-25 | 159 | 7 | 500 | ||
| DN200-25 | DN200 | 219 | 7 | 500 | |
| DN250-25 | DN250 | 273 | 8 | 800 | |
| DN300-25 | DN300 | 325 | 8 | 800 | |
| DN350-25 | DN350 | 356 | 8 | 900 | |
| DN350B-25 | 377 | 8 | 900 | ||
| DN400-25 | DN400 | 406 | 8 | 900 | Steel
Pipe 16MnR GB6654 |
| DN400B-25 | 426 | 8 | 900 | ||
| DN450-25 | DN450 | 457 | 8 | 900 | |
| DN450B-25 | 480 | 8 | 900 | ||
| DN500-25 | DN500 | 508 | 10 | 900 | |
| DN500B-25 | 530 | 10 | 900 | ||
| DN600-25 | DN600 | 610 | 10 | 1000 | |
| DN600B-25 | 630 | 10 | 1000 | ||
| DN700-25 | DN700 | 711 | 10 | 1200 | |
| DN700B-25 | 720 | 10 | 1200 | ||
| DN800-25 | DN800 | 813 | 12 | 1300 | |
| DN800B-25 | 820 | 12 | 1300 |
